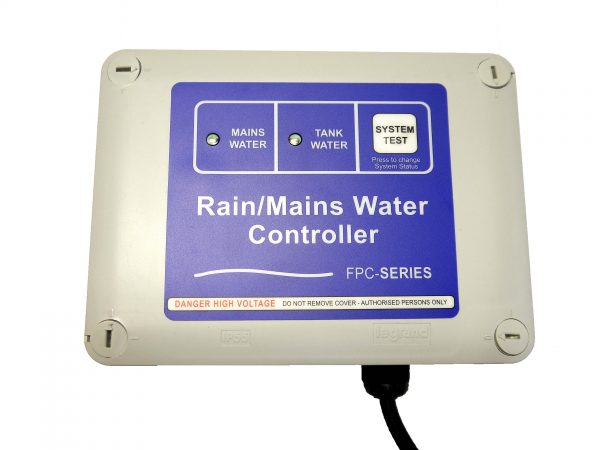

FPC-12721 RainMains Controller Quick Plug

FPC-12721 RainMains Controller Quick Plug – is designed to provide a continuous supply of water for a variety of uses, whilst prioritising and unique Valve and a Liquid Level Switch. The controller not only monitors the level of stored Rain Water, switching the valve accordingly, but also provides a switched output for the control of power to a pressure pumping system. If Rain Water becomes available, the valve through which Mains Water is being supplied, is automatically pulsed closed by the controller, and at the same time.

The 240VAC pump output contacts are energised. In the event of either ‘Rain Water Depletion’ or ‘Power Failure’ the controller will immediately pulse the valve open, and de-energises the pump output contacts. The controller has a ‘System Test’ function which, if initiated, changes the status of the system to enable the operator to check pump and valve function at the press of a button.
